Product Functions Overview

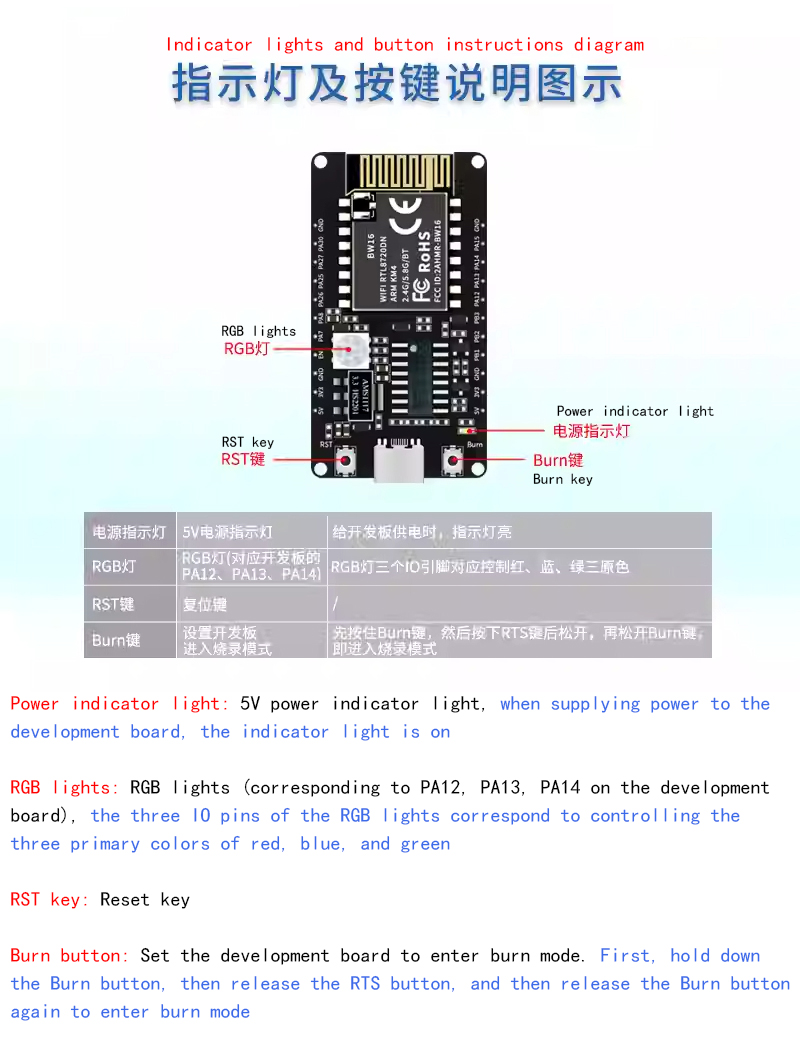

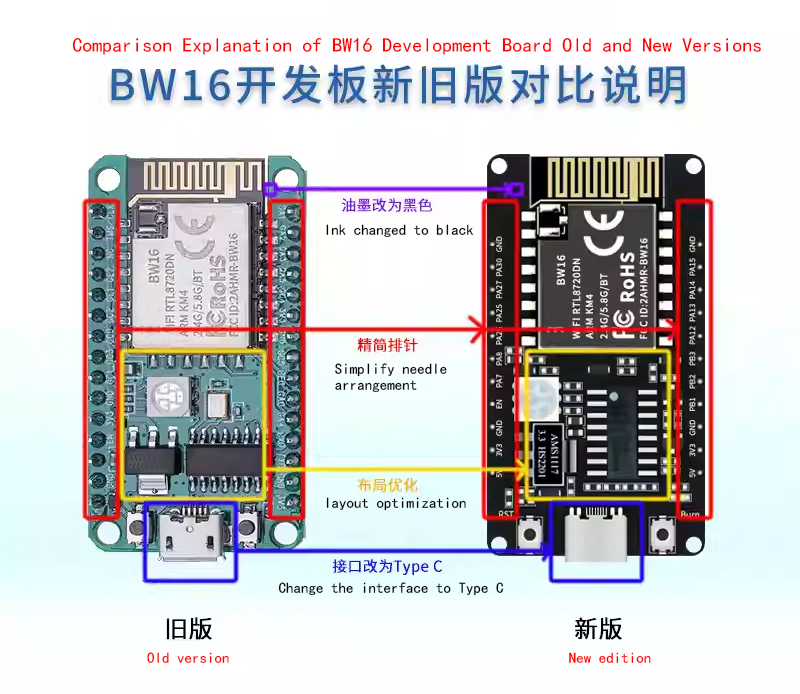

The BW16 Kit development board is a core development board designed for the BW16 module. This development board continues the classic design of the NodeMCU development board, featuring pin headers from 1/0 to both sides, onboard RGB rainbow lights, and developers can also connect peripherals according to their own needs. BW16 is a dual band Wi Fi+Bluetooth SoC module developed based on the RTL8720DN chip. It supports dual band (2.4GHz or 5GHz) WLAN and low-power Bluetooth 5.0; And it integrates ARM V8 (compatible with Cortex-M4F) high-performance MCU, ARMV8M (compatible with Cortex-M0) low-power MCU, WLAN (802.11a/b/g/n), MAC, Bluetooth baseband, and RF baseband. It also provides a set of configurable GPIO ports for controlling different peripheral devices.
Product Specifications
| 開發(fā)板型號 Development board model | BW16-Kit |
| 適合模組 Suitable for modules | BW16 |
| 封裝 Encapsulation | DIP-22(2.54間距標準排針) DIP-22 (2.54 standard spacing pin arrangement) |

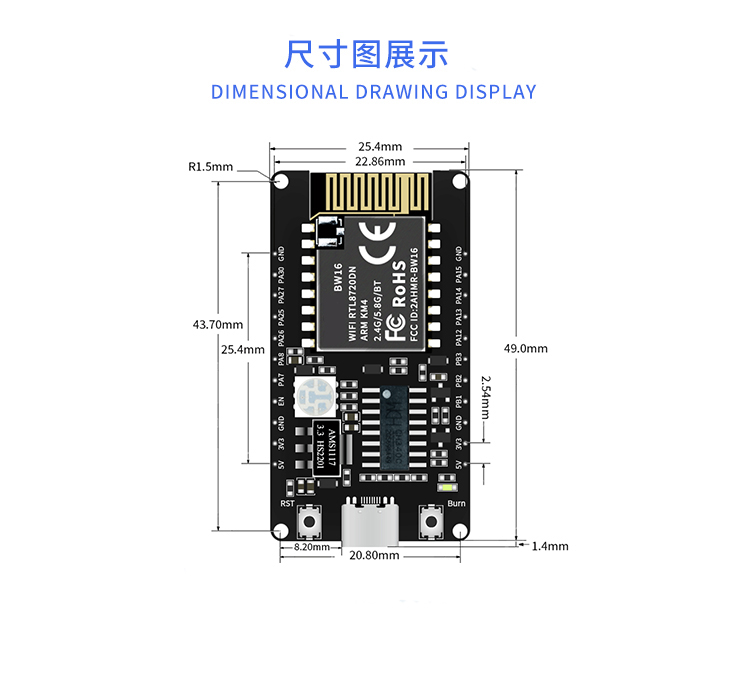

| 尺寸(mm) Size(mm) | 50.4*25.4(0.2)MM |
| 天線形式 Antenna form | 板載PCB天線 Onboard PCB antenna |
| 頻譜范圍 Spectrum range | 2400-2483.5MHz or 5180-5825MHz |
| WIFI | Supports 802.1la/b/g/n |
| 藍牙 Bluetooth | BLE5.0 |
| 工作環(huán)境 Work environment | -40°C~85°C |
| 存儲環(huán)境 Storage environment | -40°C~125°C,<90%RH |
| 供電范圍 Power supply range | 供電電壓 5V，電流>500mA Supply voltage 5V, current>500mA |
| 支持接口 Support interfaces | UART/GPIO/ADC/PWM/IIC/SPI/SWD |
| IO口數(shù)量 Number of IO ports | 13個GPI0包括(TX0\RX0及TX1\RX1) 13 GPIO including (TX0 \ RX0 and TX1 \ RX1) |
| 安全性 safety | AES/DES/SHA |
| FLASH | 默認2MB，可選4MB Default 2MB, optional 4MB |

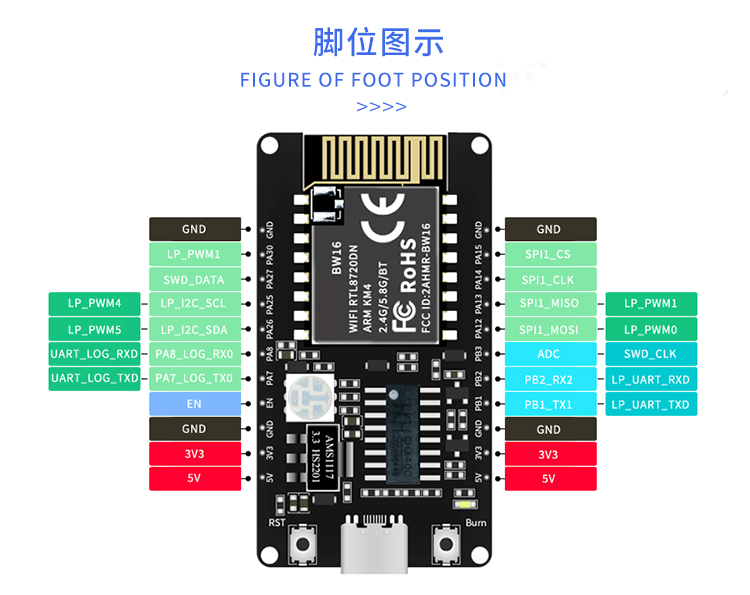

| 腳序 Foot sequence | 名稱 Name | 功能說明 Function Description |
| 1 | GND | 接地 Grounding |
| 2 | PA30 | LP_PWM1 |
| 3 | PA27 | SWD_DATA |
| 4 | PA25 | LP_I2C_SCL/LP_PWM4 |
| 5 | PA26 | LP_I2C_SDA/LP_PWM5 |
| 6 | PA8_LOG_RX0 | UART_LOG_RXD |
| 7 | PA7_LOG_TX0 | UART_LOG_TXD |
| 8 | EN | 芯片使能端 Chip enable terminal |
| 9 | GND | 接地 Grounding |
| 10 | 3V3 | 3.3V 電源 3.3V power supply |
| 11 | 5V | 5V 電源 5V power supply |
| 12 | 5V | 5V 電源 5V power supply |
| 13 | 3V3 | 3.3V 電源 3.3V power supply |
| 14 | GND | 接地 Grounding |
| 15 | PB1_TX1 | LP_UART_TXD |
| 16 | PB2_RX1 | LP_UART_RXD |
| 17 | PB3 | ADC/SWD_CLK |
| 18 | PA12 | LP_PWM0/SPI1_MOSI |
| 19 | PA13 | LP_PWM1/SPI1_MISO |
| 20 | PA14 | SPI1_CLK |
| 21 | PA15 | SPI1_CS |
| 22 | GND | 接地 Grounding |

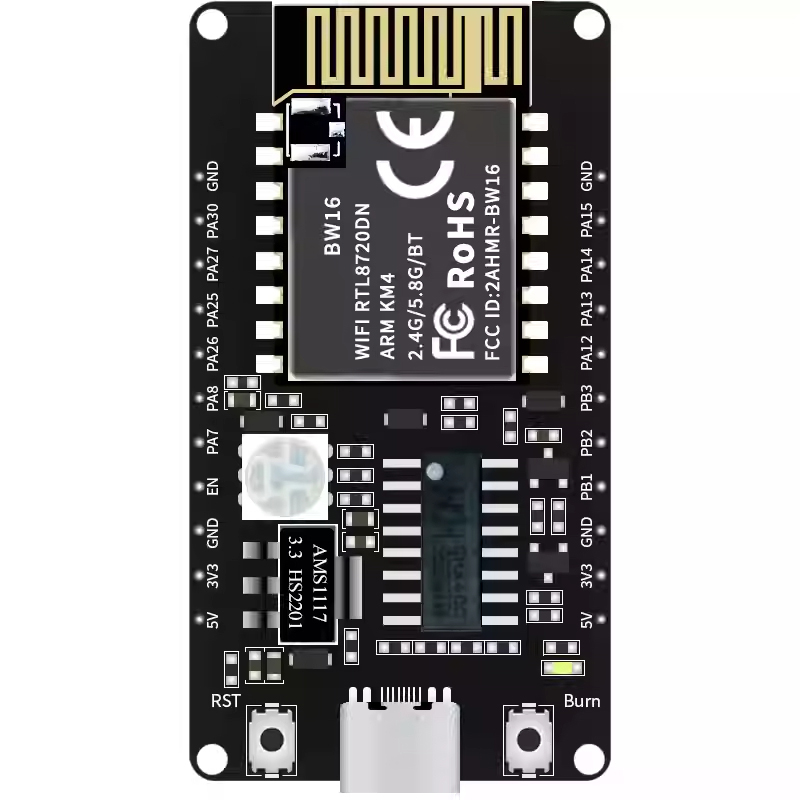

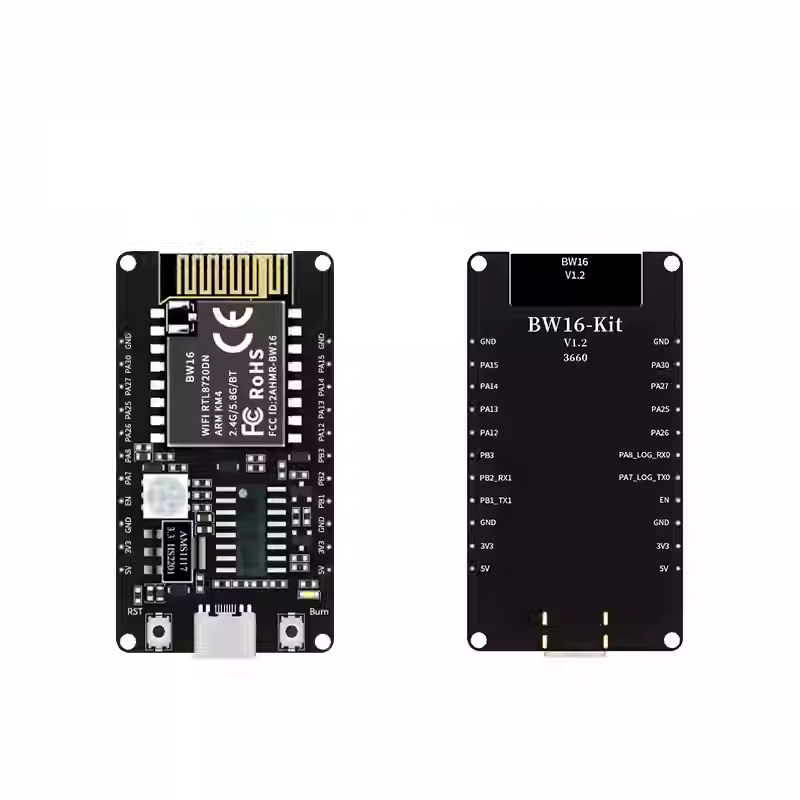

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
