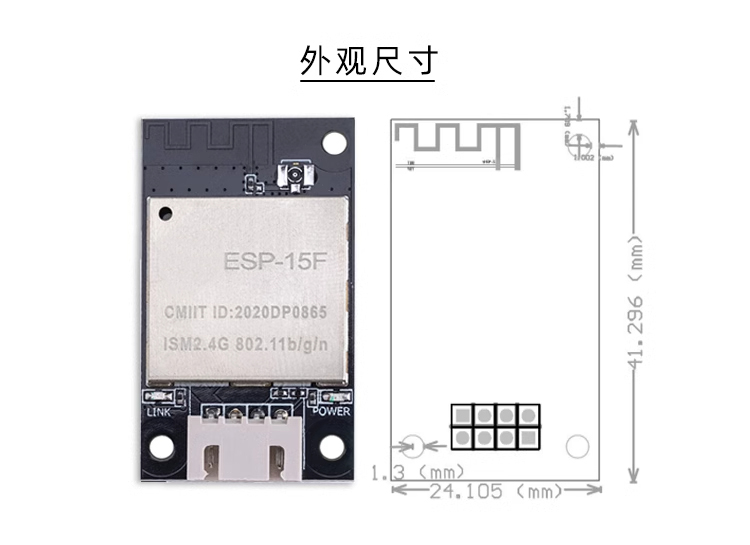

Product Size

Product Specifications

Product Characteristic

Software Features

■ Complete 802.11b/g/n Wi Fi SOC;

■ Built in Tensilicon L106 ultra-low power 32-bit micro MCU, with clock speeds supporting 80MHz and 160 MHz, supporting RTOS secondary development;

■ Built in 1 channel 10 bit high-precision ADC;

■ Only supports UART interface;

■ Adopting PH2.54 connector/DIP-8 package;

■ Integrated Wi Fi MAC/BB/RF/PA/LNA;

■ Supports multiple sleep modes, with standby power consumption as low as 1.0mW;

■ The maximum serial port speed can reach 4Mbps;

■ Embedded Lwip protocol stack;

■ Support STA/AP/STA+AP working mode;

■ Supports Android and 10S SmartConfig (APP)/AirKiss (WeChat) one click distribution network;

■ Support local serial port upgrade and remote firmware upgrade (FOTA);

■ The universal AT command can be quickly mastered, and the AT firmware is burned by default at the factory; Supports secondary development and integrates Windows and Linux development environments;

■ By using the AT command to set up WiFi MQTT cloud connection, it can be integrated with Alibaba Cloud, Tencent Cloud, Amazon Cloud, and other platforms.

Hardware features

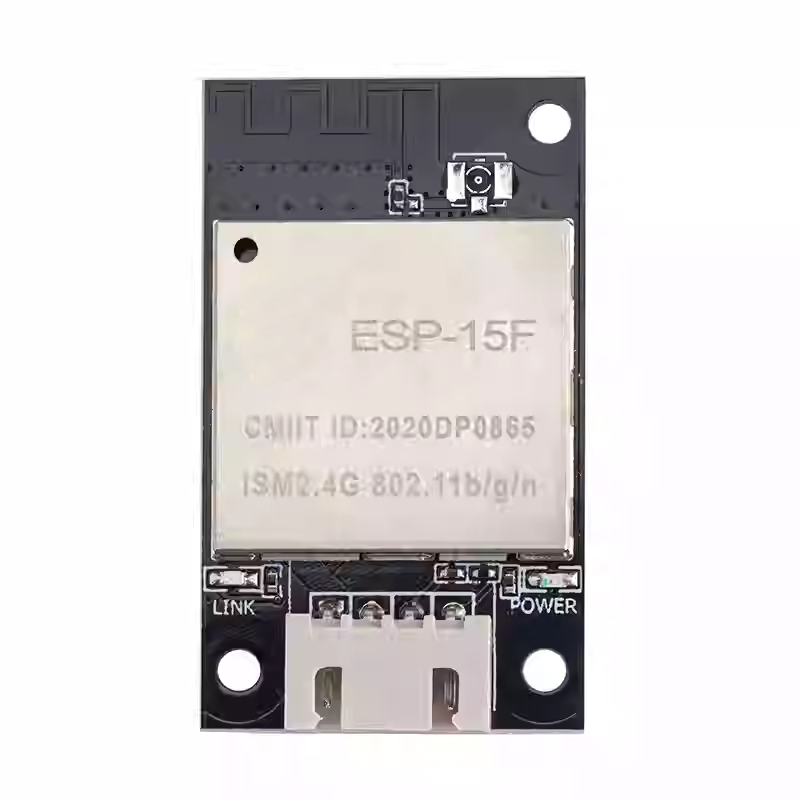

■WiFi data transmission module with ESP8266 as the core

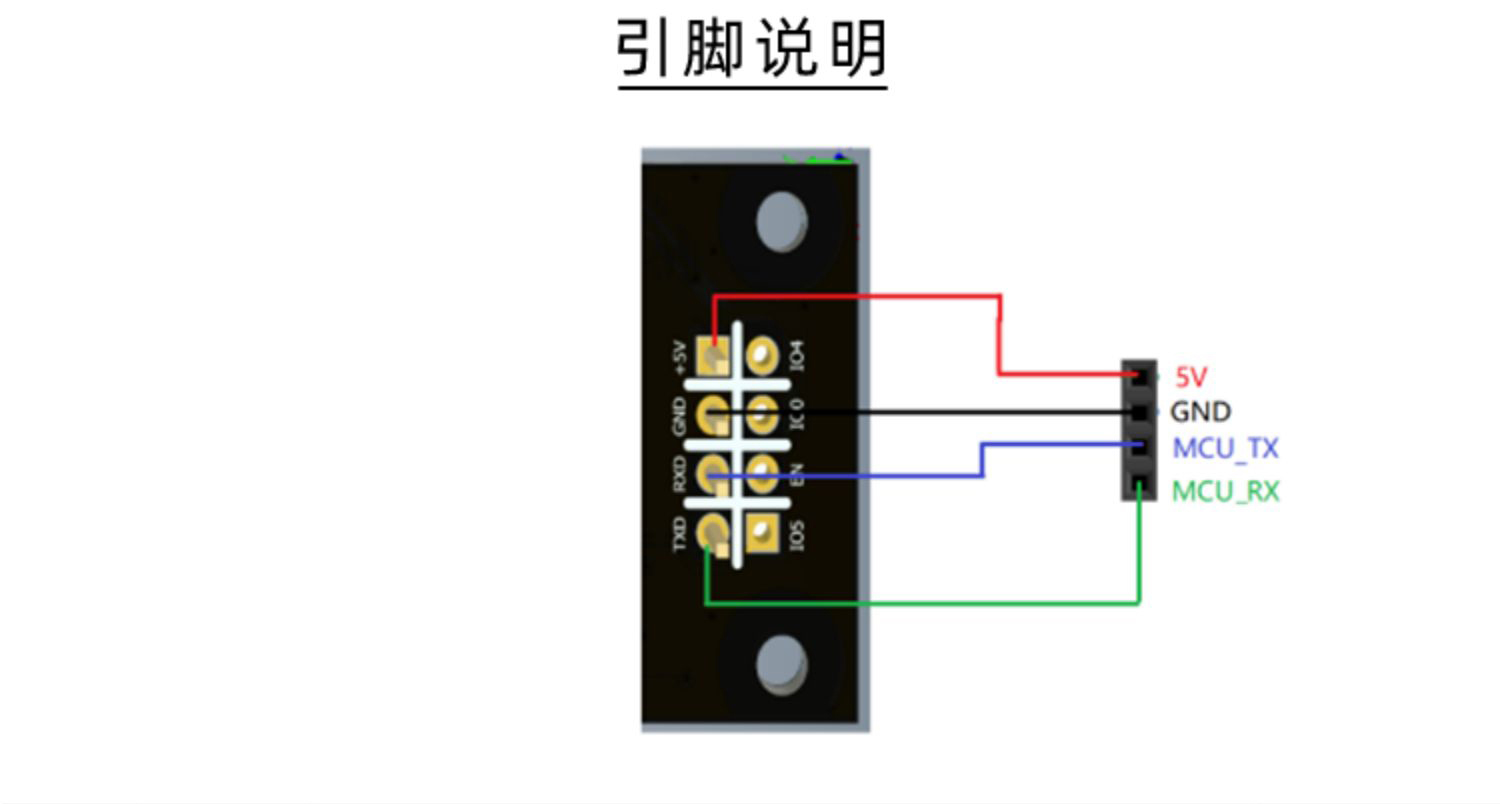

■No need for board design, 4PIN wiring can achieve data exchange between MCU end and cloud through WiFi transmission

■Does not affect the main circuit design, only needs to lead out the serial port cable

■Supports 5V power supply, without considering compatibility with 5V microcontroller levels;

■Adopting PH2.54 connector/DIP-8 package;

■Integrated Wi Fi MAC/BB/RF/PA/LA;

■Supports multiple sleep modes, with standby power consumption as low as 1.0mW;

■The maximum serial port speed can reach 4Mbps;

■Embedded Lwip protocol stack;

■Support STA/AP/STA+AP working mode;

■Support Android and 10S Smart config (APP)/AirKiss (WeChat) one click distribution network;

■Support local serial port upgrade and remote firmware upgrade (FOTA);

■The universal AT command can be quickly mastered, and the AT firmware is burned by default at the factory;

■Supports secondary development and integrates Windows and Linux development environments;

■By using the AT command to set up WiFi MOTT cloud connection, it is possible to connect to Alibaba Cloud, Tencent Cloud, Amazon Cloud, and other platforms.

Module Startup Mode Description
