Product Features
Product Functions
Functional features: BW16 is a dual band Wi Fi+Bluetooth SoC module developed based on RTL8720DN. BW16 supports dual band (2.4GHz or 5GHz) WLAN and low-power Bluetooth 5.0; It integrates ARMV8 (compatible with Cortex-M4F) high-performance MCU, ARMV8M (compatible with Cortex-M0) low-power MCU WLAN(802.11a/b/g/n)、MAC， Bluetooth baseband and RF baseband, and provide a set of configurable GPIO ports for controlling different peripheral devices.
BW16 also integrates internal memory, supports simple application development, and can achieve complete Wi Fi and BT5.0 protocol functions.

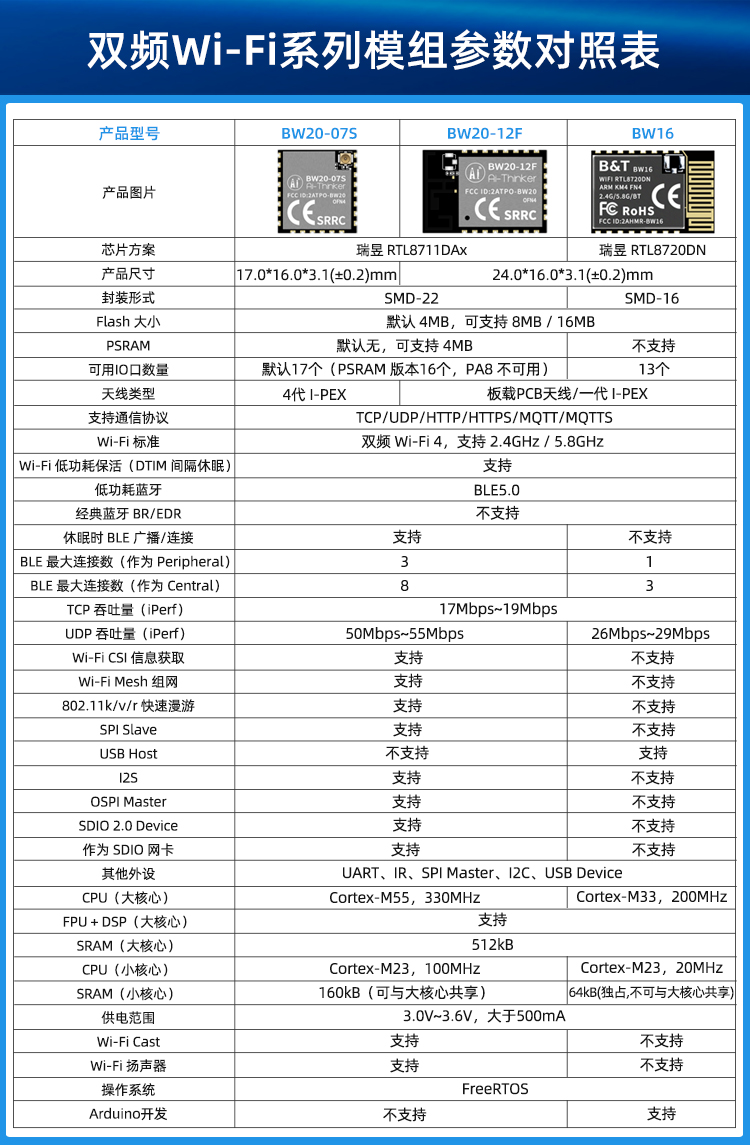

Product Specifications
| 模塊型號 Module Type | BW16 |
| 封裝 Encapsulation | SMD-16 |
| 尺寸 Size(mm) | 24*16*3(+0.2)mm |
| 天線形式 Antenna form | 板載PCB天線或IPEX天線 Onboard PCB antenna or IPEX antenna |
| 頻譜范圍 Spectrum range | 2400-2483.5MHz或5180-5825MHZ |
| 藍牙 Bluetooth | BLE5.0 |
| 藍牙頻率范圍 Bluetooth frequency range | 2.402GHz-2.480GHz |
| 支持接口 Support interfaces | UART/GPIO/ADC/PWM/IIC/SPI/SWD |
| 供電范圍 Power supply range | 供電電壓 3.0V~3.6V，典型值3.3V，供電電流>500mA Supply voltage 3.0V~3.6V, typical value 3.3V, supply current>500mA |
| 工作溫度 Operation temperature | -40℃~85 ℃ |
| 存儲環境 Storage environment | -40℃~125℃，<90%RH |
| 認證 Authentication | ROHS、FCC、CE、SRRC |

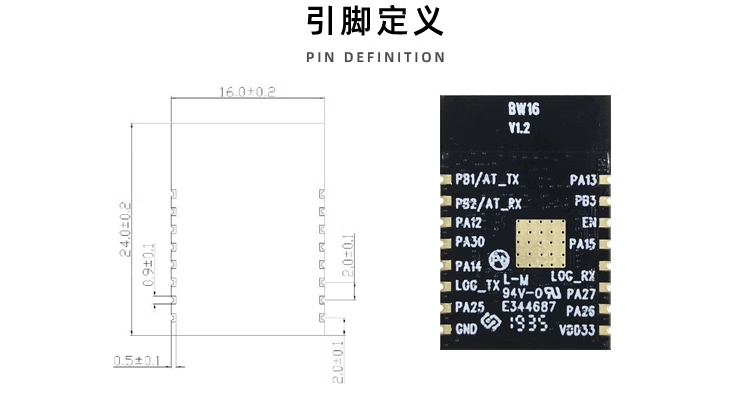

| 腳序 Foot sequence | 名稱 Name | 功能說明 Function Description |
| 1 | PA13 | LP_PWMI/SPI1_MISO |
| 2 | PB3 | ADC/SWD-CLK |
| 3 | CHIP_EN | 芯片使能端 Chip enable terminal |
| 4 | PA15 | SPI1_CS |
| 5 | PA8 | UART_LOG_RXD |
| 6 | PA27 | SWD_DATA |
| 7 | PA26 | LP_I2C_SDA/LP_PWM5 |
| 8 | VDD_3V3 | 3.3V供電(VDD);最大450mA 3.3V power supply (VDD); Maximum 450mA |
| 9 | GND | 接地 Grounding |
| 10 | PA25 | LP_I2C_SCL/LP_PWM4 |
| 11 | PA7 | UART_LOG_TXD |
| 12 | PA14 | SPI1_CLK |
| 13 | PA30 | LP_PWM1 |
| 14 | PA12 | SPI1_MOSI/LP_PWMO |
| 15 | PB2 | LP_UART_RXD |
| 16 | PB1 | LP_UART_TXD |

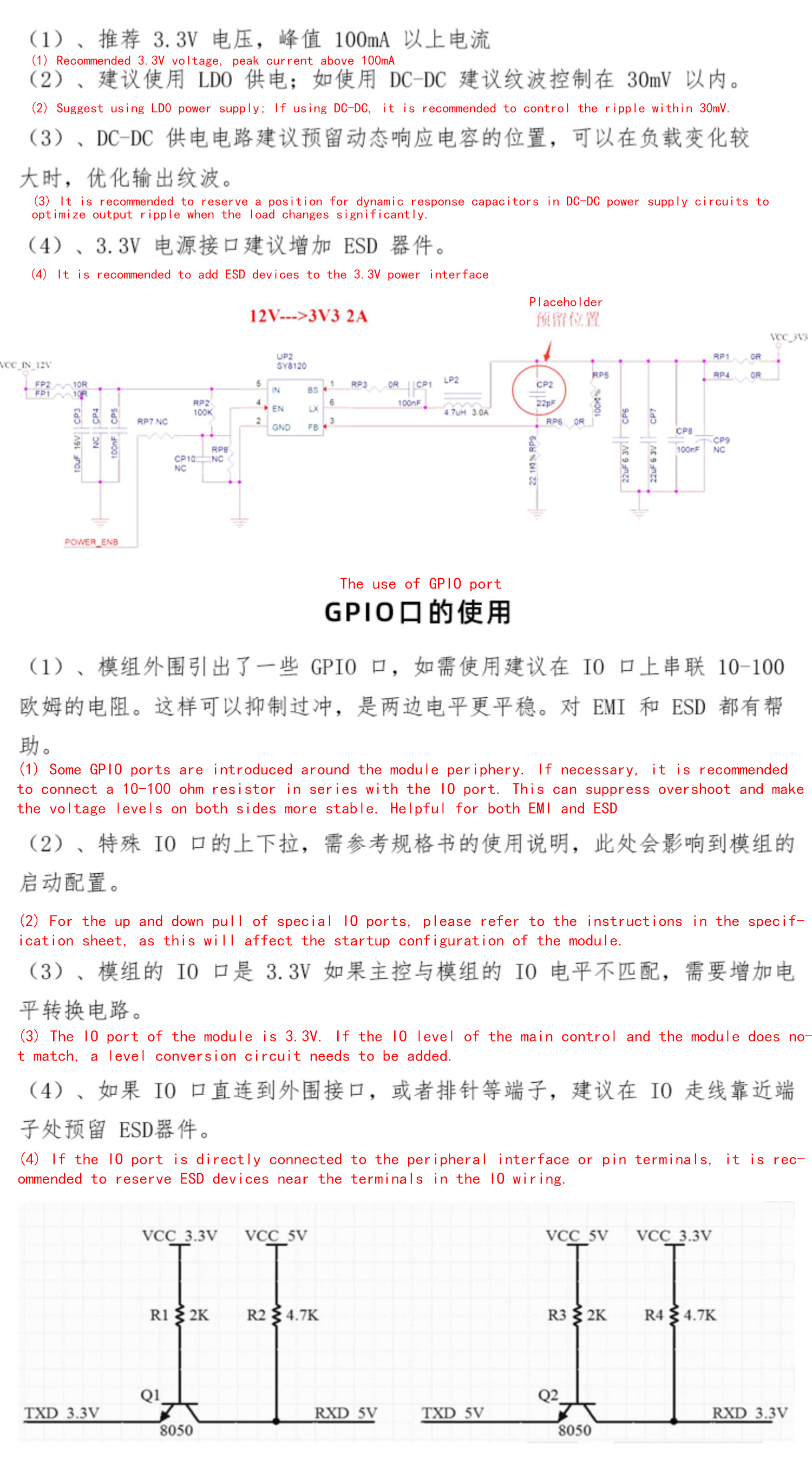

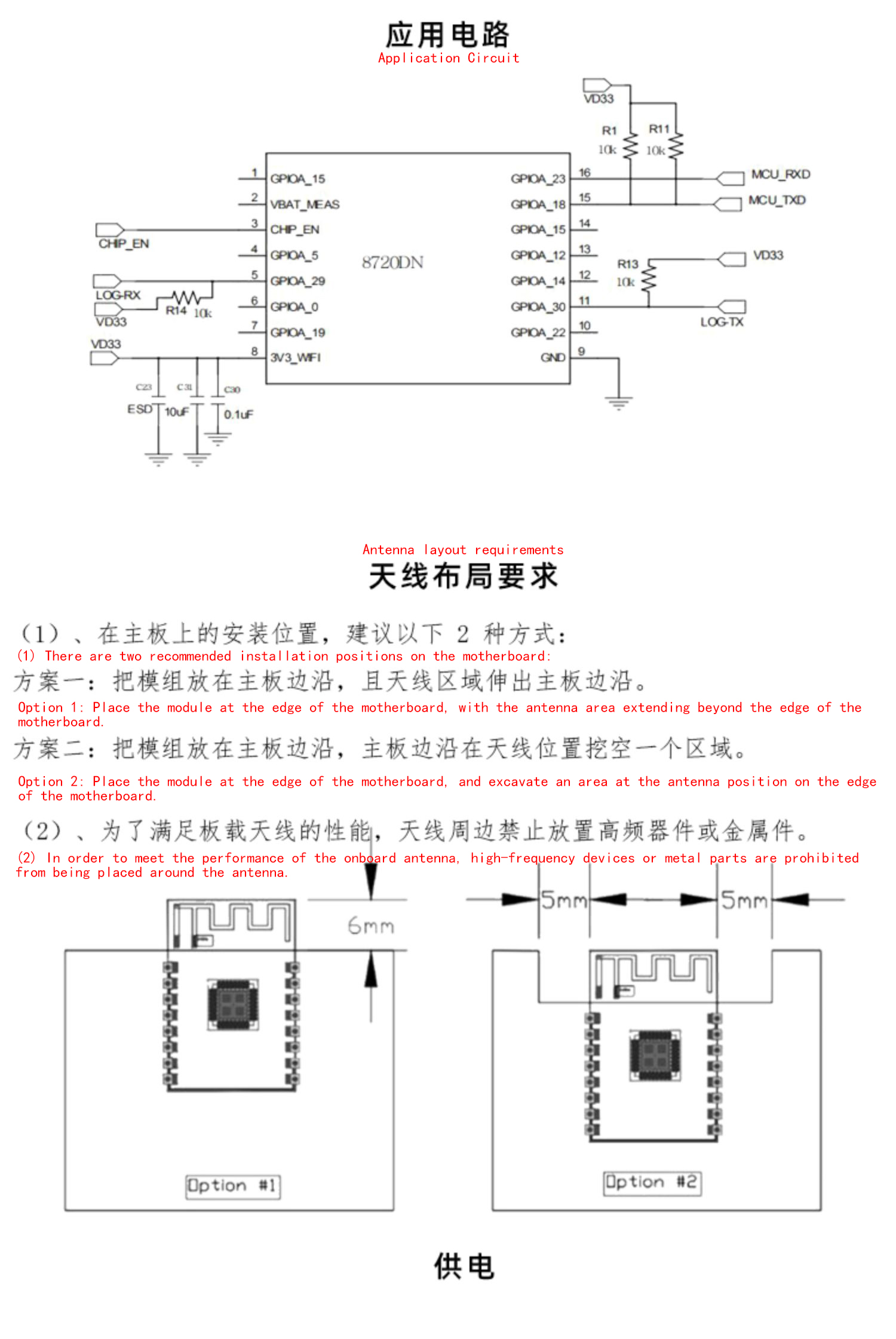

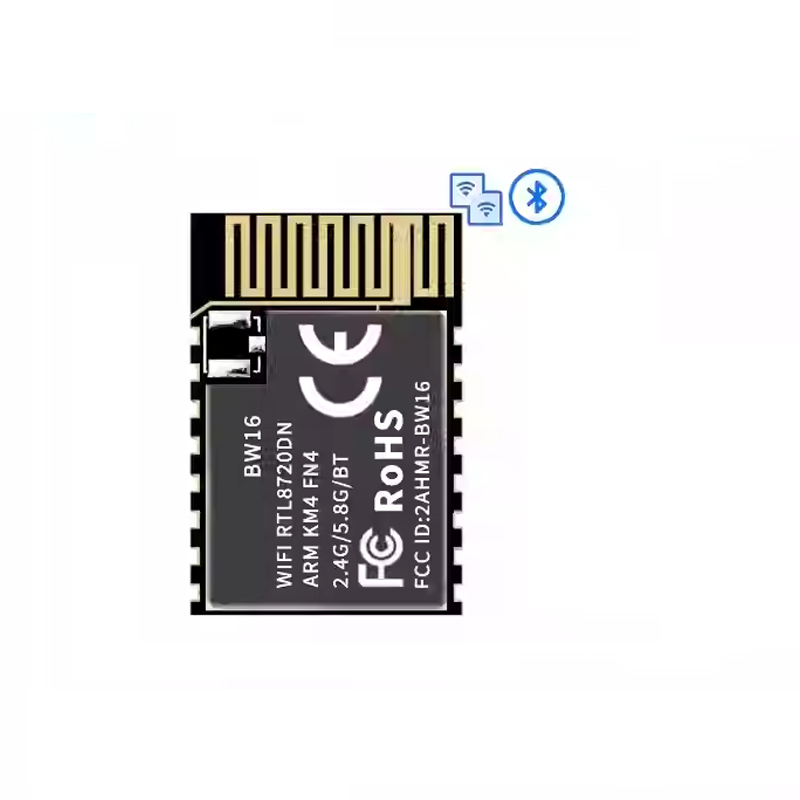

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
