Product Features
Product Functions
Functional features: Developed based on the ESP8266 chip, the module integrates transparent transmission function, which is ready to use and supports serial AT command set. Users can access the network through the serial port, which is widely used in smart wearables, smart homes, home security, remote controls, automotive electronics, smart lighting, industrial Internet of Things and other fields.
Product Specifications
| 模塊型號 Module model | ESP-01 | 描述 Describe |
| 封裝形式 Packaging form | DIP-8 | 直插 Direct insertion |
| 模組尺寸 Module Size | 24.7*14.4*11MM | +0.2mm |
| SPI FLASH | 8Mbit | 默認 Default |
| 支持接口 Support interfaces | / | UART/GPIO |
| 可用IO口 Available IO ports | 2 | |
| 串口速率 Series Rate | 4608000bps | 支持300~4608000bps，默認115200bps Supports 300-460800bps, default 115200bps |
| 頻譜范圍 Spectrum range | 2.4GHZ | 2412~2484MHZ |
| 天線形式 Antenna form | 板載 Onboard | 板載PCB天線，增益2dBi Onboard PCB antenna, gain 2dBi |
| 發射功率 Transmission power | / | 802.11b:16+2dBm;802.11g:14+2dBm;802.11n:13+2dBm; |
| 安全性 Security | / | WEP/WPA-PSK/WPA2-PSK |
| 供電范圍 Power supply range | 3.3V | 3.0~3.6V，Current>500mA |
| 工作溫度 Working temperature | 工業級 Industrial grade | -20℃~+85℃ |
| AT支持 AT support | 內置智能化處理 Built in intelligent processing | 可通過AT指令命令讀取 Can be read through AT command |
The module supports 4Mbps high-speed transmission, which is faster in large data transmission applications such as WiFi printers, WiFi serial cameras, and WiFi high-speed data collection

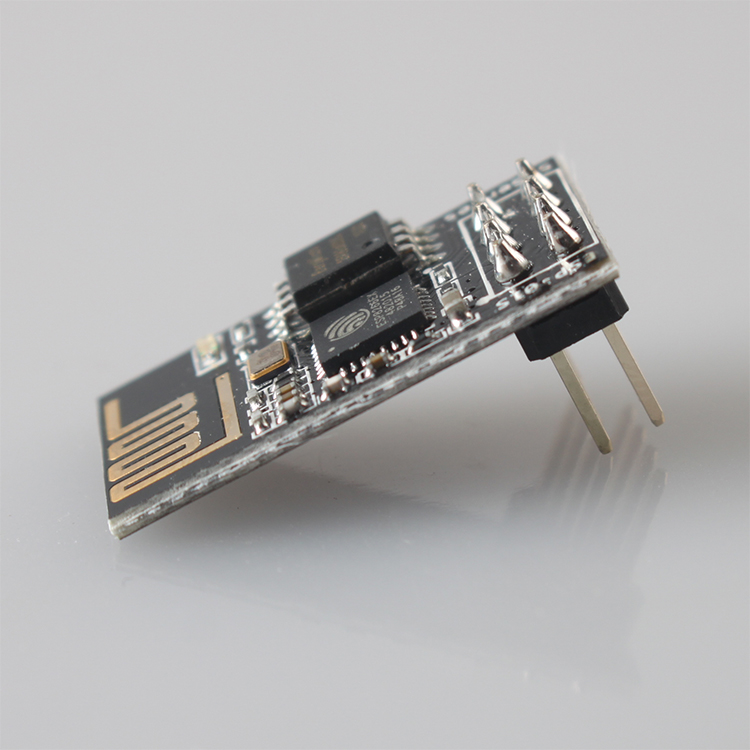

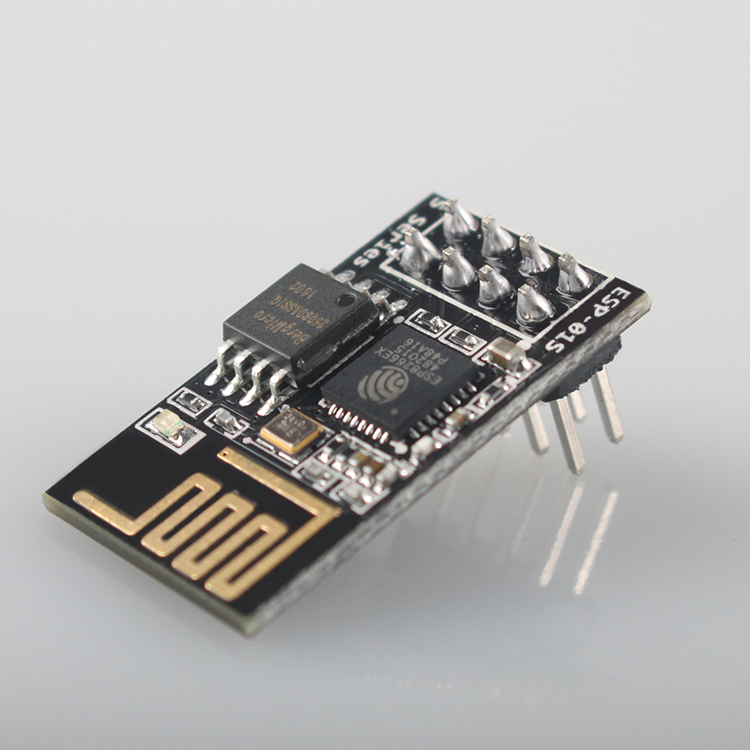

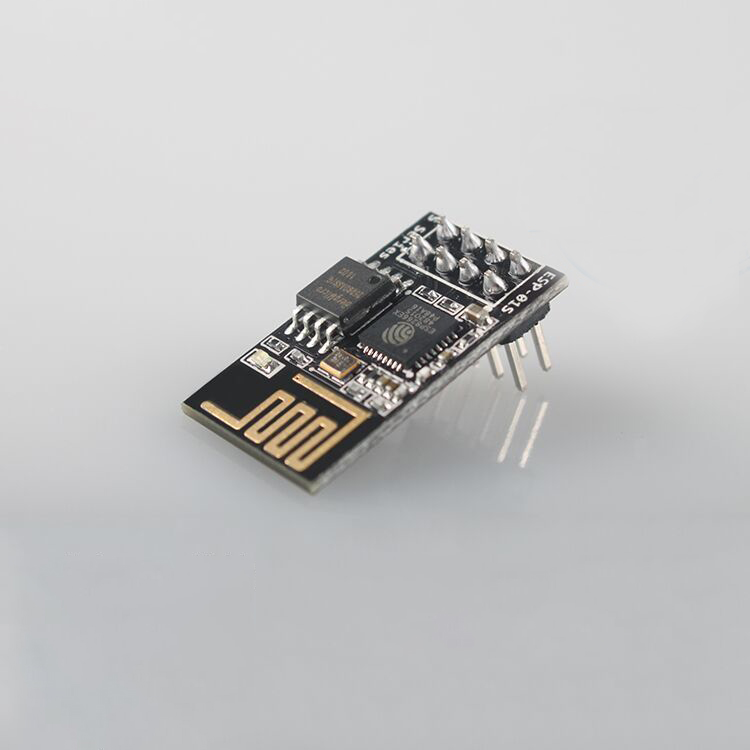

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
