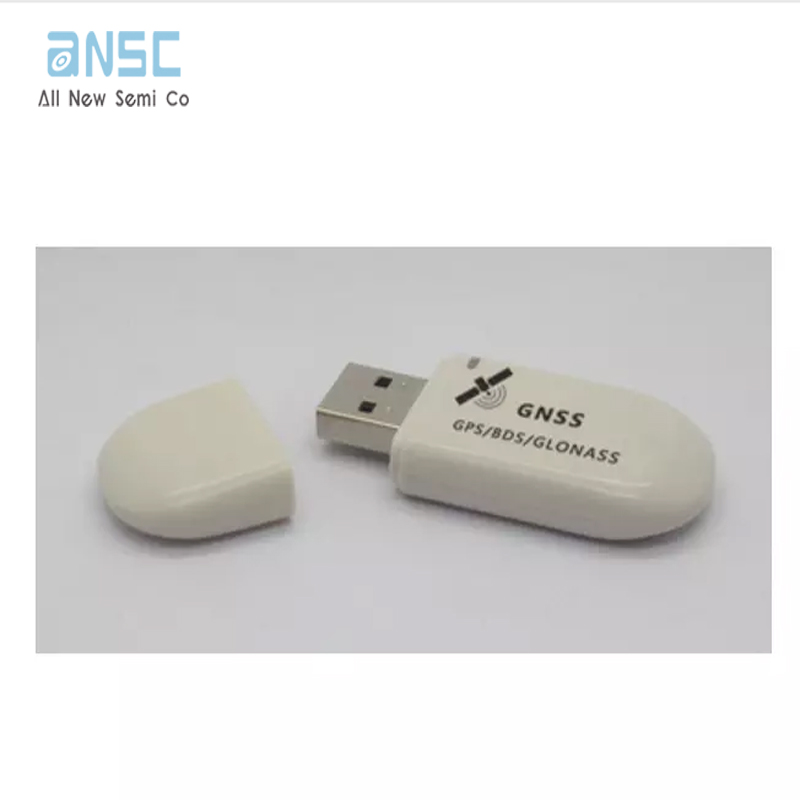

G72 GPS module / BeiDou module / GLONASS module USB interface GNSS module Beidou navigation
GPS + Beidou dual-mode positioning, built-in flash, USB power supply, adaptive 1200-921600 baud rate, 1Hz output, NMEA-0183
protocol output
1. Data baud rate: 9600 (default) (optional: 4800192003840057600115200, etc.)
2. Output statements: (GGA, GSA, GSV, RMC, VTG, GLL) can be set and matched arbitrarily.
3. Data refresh rate: 1 Hz-10 Hz refresh rate (1-10 times of data output per second can be set).
4. Set PPS second pulse freely (for example, let PPS light flash once every 3 seconds, which can be used for indicator light synchronization)
Highlights

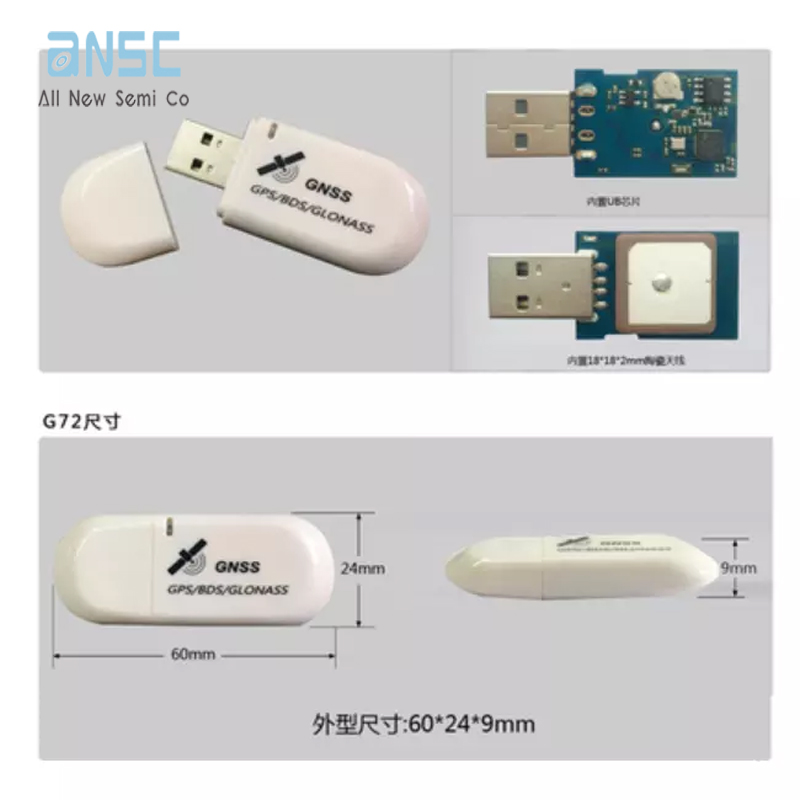

Industry standard 18 * 18 * 2mm high sensitivity GPS antenna

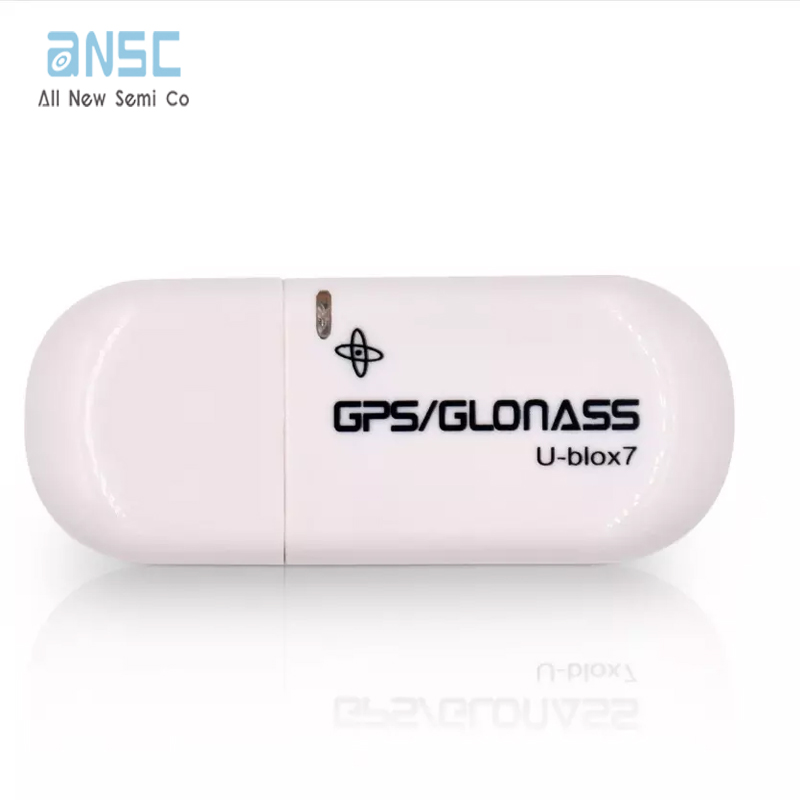

support GPS + Beidou (default); GPS + GLONASS; GLONASS + Beidou multiple mode output
built in RTC crystal and leather capacitor for faster hot start
1-10hz positioning update rate
built in LNA signal amplifier
built in fast, free configuration of product baud rate, output statement, output rate, second pulse and other parameters
support positioning PPS indicator: the front lamp of product positioning is not on, and flickers after successful positioning
support A-GPS services such as assistnow online and assistnow offline
GPS, Galileo, SBAS (was, EGNOS, MSAs, Gagan) hybrid engines
