Product Details

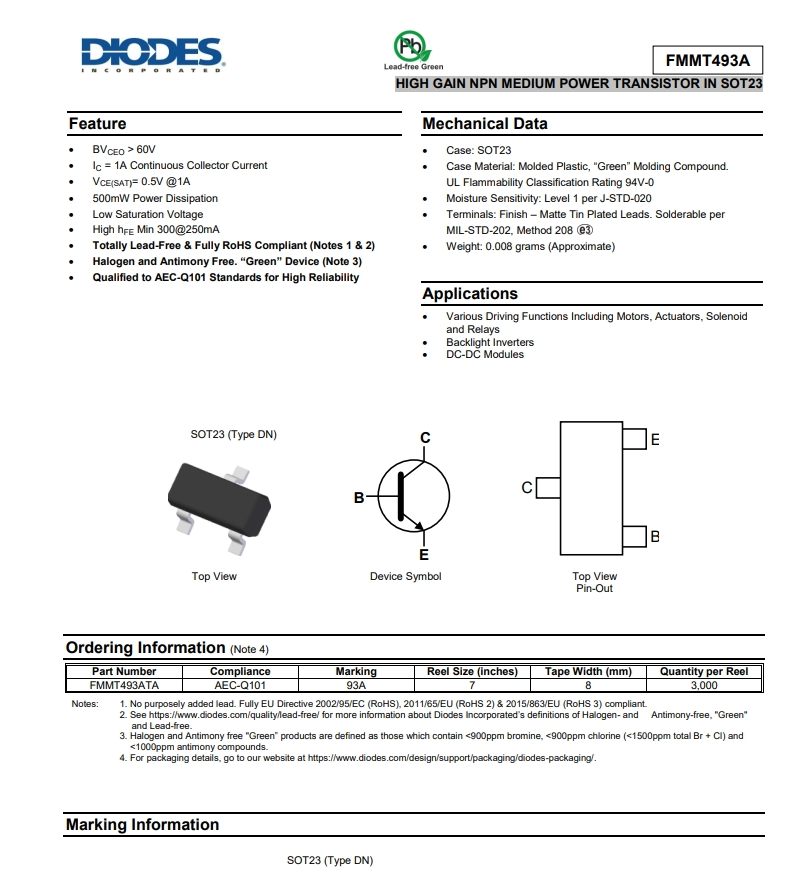

Feature
_
BVCEO > 60V
Ic = 1A Continuous Collector Current
VCE(SAT)= 0.5V @1A
500mW Power Dissipation
Low Saturation Voltage
High heE Min 300@250mA
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. "Greon" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data

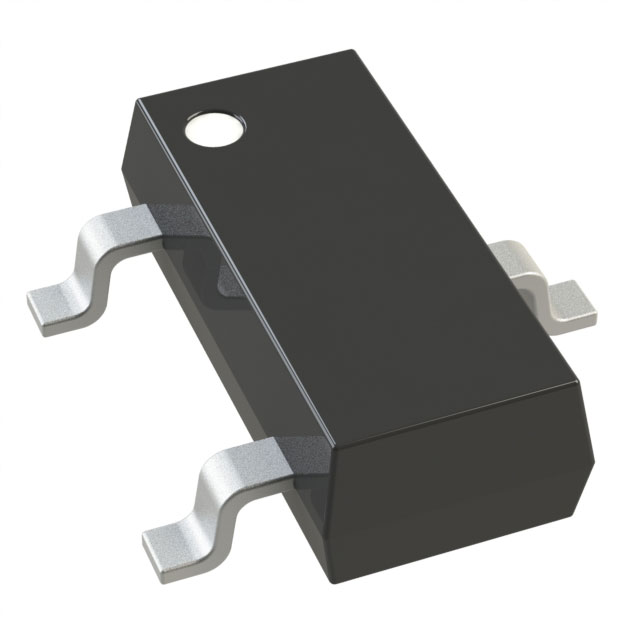

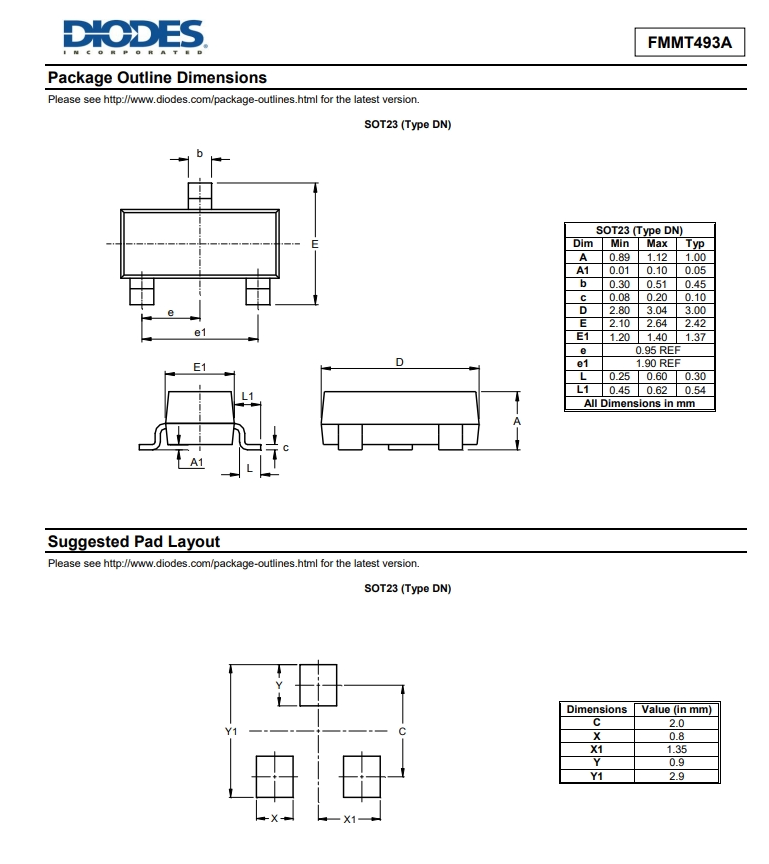

Case: SOT23
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammabi?ty Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
.
Terminals: Finish – Matte Tin Plated Leads. Solderable per
MIL-STD-202. Method 208 (e③)
.
Weight: 0.008 grams (Approximate)
Applications
Various Driving Functions Including Motors, Actuators, Solenoid
and Relays
Backlight Inverters
DC-DC Modules
.
.
Product Description
| ansc Part # | ANSC- FMMT493ATA |
| Part# | FMMT493ATA |
| Type： | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
| Manufactor | Diodes Incorporated |
| DC | new |
| Package / Case | SOT-23-3 |
| Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel廬 | |
| Product Status | Active |

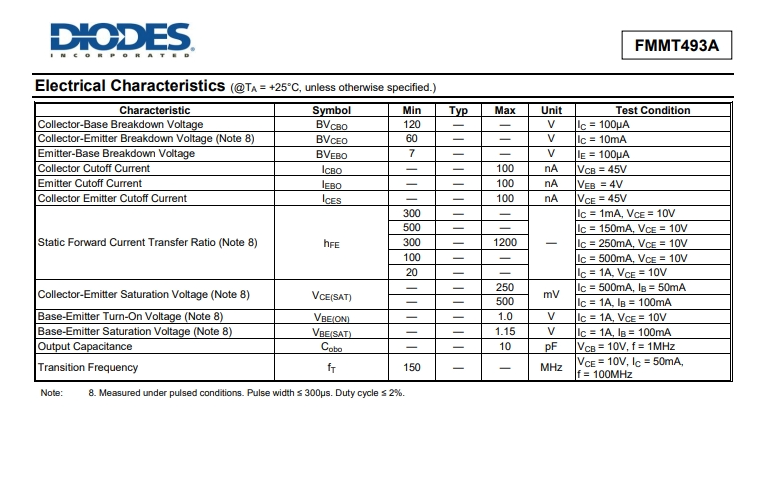

| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 250mA, 10V |

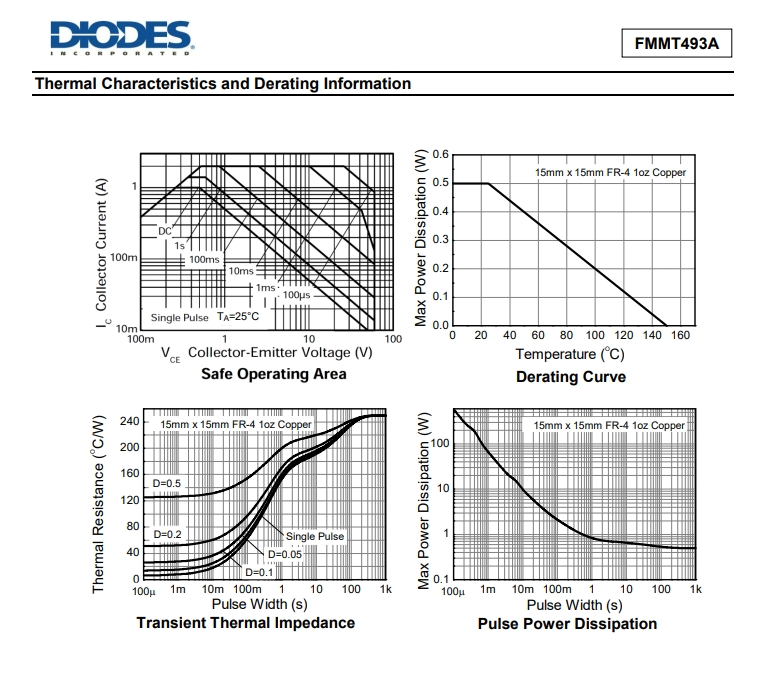

| Power - Max | 500 mW |
| Frequency - Transition | 150MHz |
| Operating Temperature | -55擄C ~ 150擄C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | FMMT493 |

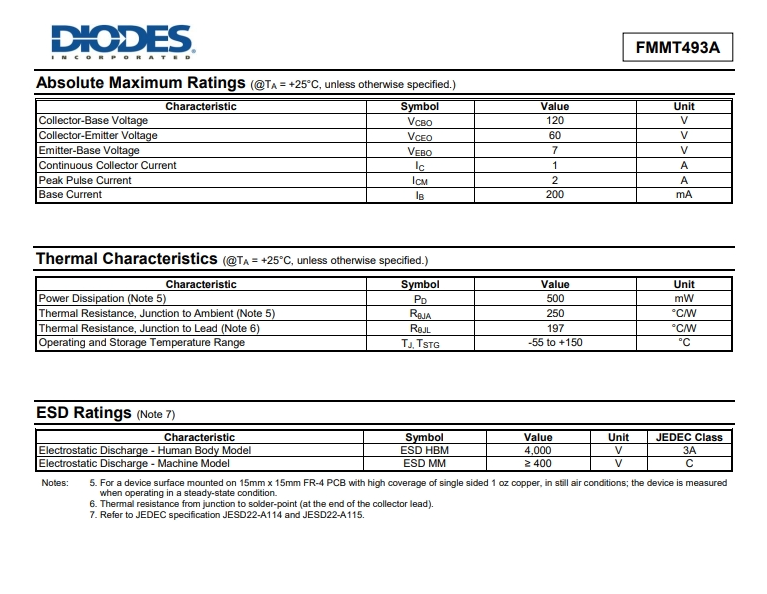

Product Data Book
Please download the more product specifications
