Product Details
Features
? Simplifies Circuit Design
? Reduces Board Space
? Reduces Component Count
? S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free/BFR Free and are RoHS Compliant
Product Description
TYPE | DESCRIPTION |
|---|---|
Category | Discrete Semiconductor Products Transistors Bipolar (BJT) Single, Pre-Biased Bipolar Transistors |
Mfr | onsemi |
Series | - |

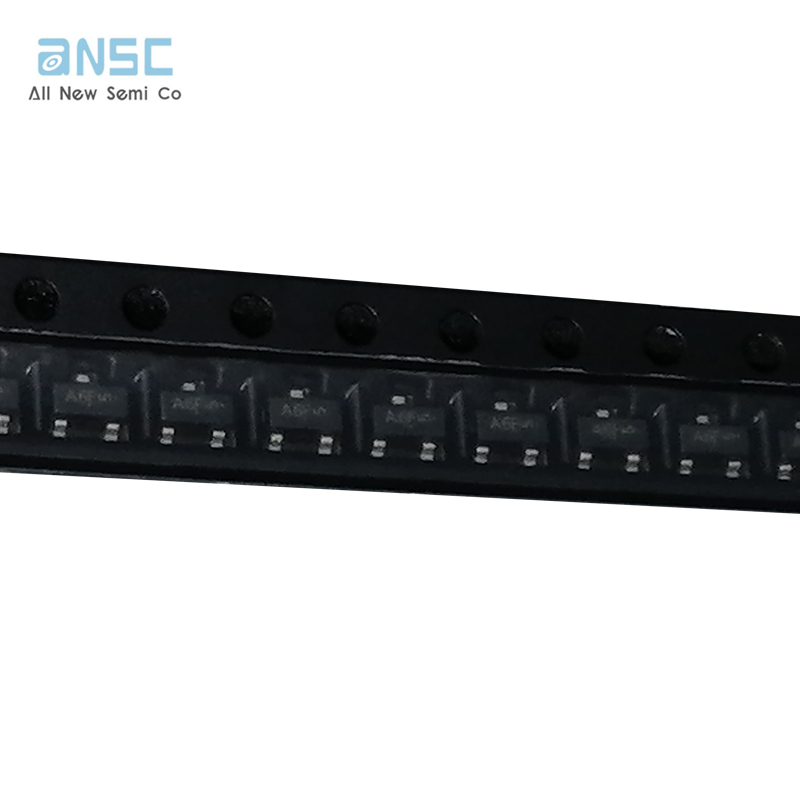

Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel? |
Product Status | Active |
Transistor Type | PNP - Pre-Biased |
Current - Collector (Ic) (Max) | 100 mA |
Voltage - Collector Emitter Breakdown (Max) | 50 V |
Resistor - Base (R1) | 4.7 kOhms |
DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 5mA, 10V |
Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
Current - Collector Cutoff (Max) | 500nA |
Power - Max | 246 mW |
Mounting Type | Surface Mount |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Supplier Device Package | SOT-23-3 (TO-236) |
Base Product Number | MMUN2116 |

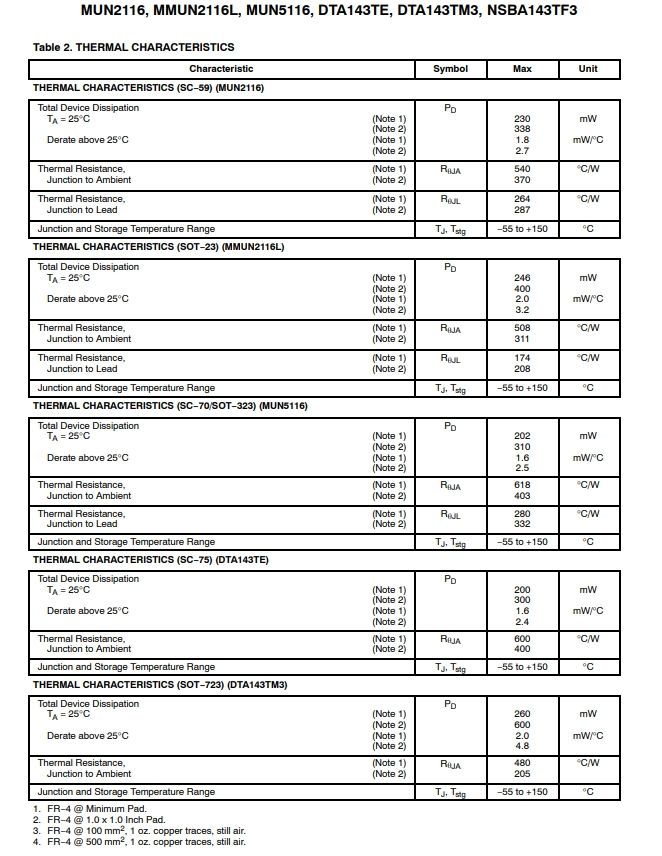

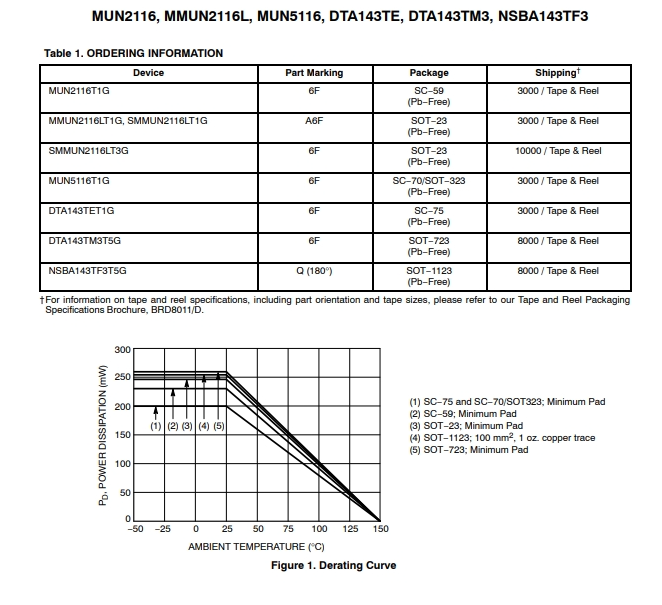

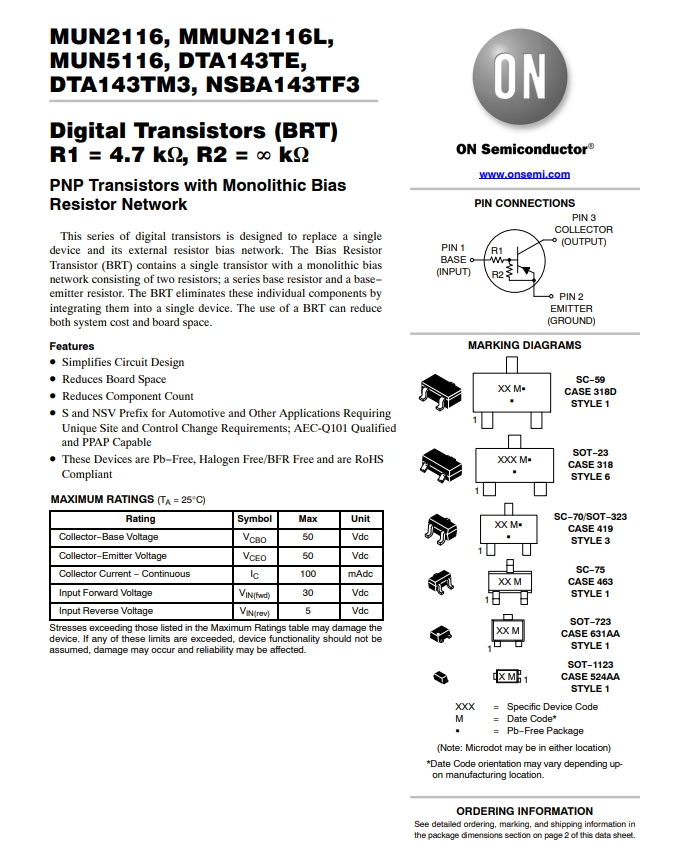

Product Data Book
Please download the more product specifications
