Product Descriptions

LT? 1097 achieves a new standard in combining low price and outstanding precision performance.

On all operational amplifier data sheets, the specifications listed on the front page are for highly selected, expensive grades, while the specs for the low cost grades are buried deep in the data sheet.

The LT1097 does not have any selected grades, the outstanding specifications shown in the Features section are for its only grade.

The design effort of the LT1097 concentrated on optimizing the performance of all precision specs—at only 350μA of supply current. Typical values are 10μV offset voltage, 40pA bias and offset currents, 0.2μV/°C and 0.4pA/°C drift. Common mode and power supply rejections, voltage gain are typically in excess of 128dB.

All parameters that are important for precision, low power op amps have been optimized. Consequently, using the LT1097 error budget calculations in most applications is unnecessary.

Product Features

■ Offset Voltage 50μV Max

■ Offset Voltage Drift 1μV/°C Max

■ Bias Current 250pA Max

■ Offset Current 250pA Max

■ Bias and Offset Current Drift 4pA/°C Max

■ Supply Current 560μA Max

■ 0.1Hz to 10Hz Noise 0.5μVp-p, 2.2pAp-p

■ CMRR 115dB Min

■ Voltage Gain 117dB Min

■ PSRR 114dB Min

■ Guaranteed Operation on Two NiCad Batteries

Product Applications

■ Replaces OP-07/OP-77/OP-97/OP-177/AD707/LT1001 with Improved Price/Performance

■ High Impedance Difference Amplifiers

■ Logarithmic Amplifiers (Wide Dynamic Range)

■ Thermocouple Amplifiers

■ Precision Instrumentation

■ Active Filters (with Small Capacitors)

Specifications

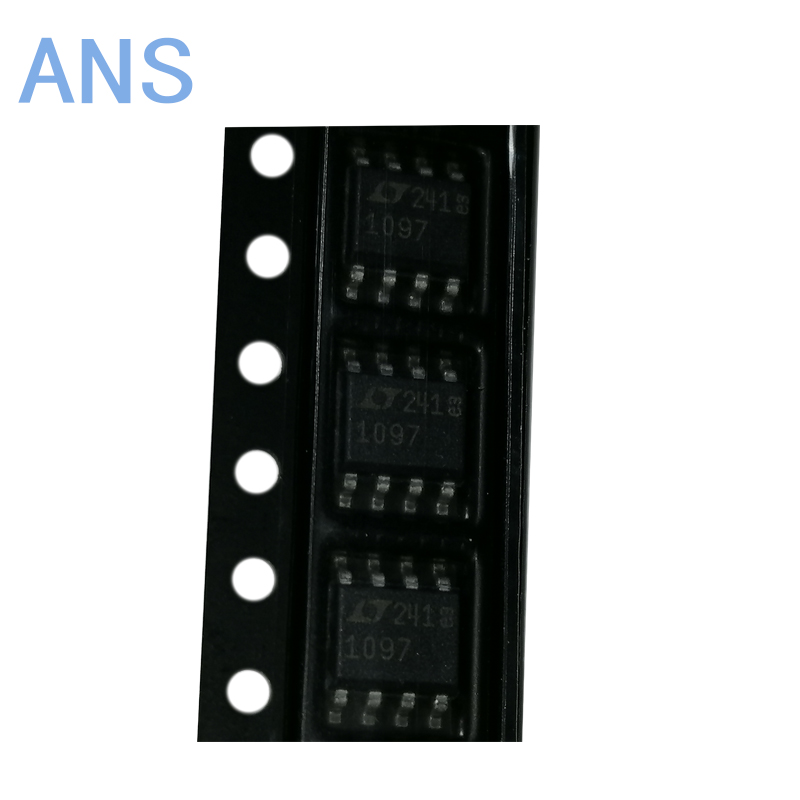

Actual product photos
