Product Descriptions

The MAX531/MAX538/MAX539 are low-power, voltageoutput, 12-bit digital-to-analog converters (DACs) specified for single +5V power-supply operation. The MAX531 can also be operated with ±5V supplies. The MAX538/MAX539 draw only 140μA, and the MAX531 (with internal reference) draws only 260μA. The MAX538/MAX539 come in 8-pin DIP and SO packages, while the MAX531 comes in 14-pin DIP and SO packages. All parts have been trimmed for offset voltage, gain, and linearity, so no further adjustment is necessary.

The MAX538’s buffer is fixed at a gain of +1 and the MAX539’s buffer at a gain of +2. The MAX531’s internal op amp may be configured for a gain of +1 or +2, as well as for unipolar or bipolar output voltages. The MAX531 can also be used as a four-quadrant multiplier without external resistors or op amps.

For parallel data inputs, see the MAX530 data sheet.

Product Features

? Operate from Single +5V Supply

? Buffered Voltage Output

? Internal 2.048V Reference (MAX531)

? 140μA Supply Current (MAX538/MAX539)

? INL = ±1/2LSB (max)

? Guaranteed Monotonic over Temperature

? Flexible Output Ranges:

0V to VDD (MAX531/MAX539)

VSS to VDD (MAX531)

0V to 2.6V (MAX531/MAX538)

? 8-Pin SO/DIP (MAX538/MAX539)

? Power-On Reset

? Serial Data Output for Daisy-Chaining

Product Applications

Battery-Powered Test Instruments

Digital Offset and Gain Adjustment

Battery-Operated/Remote Industrial Controls

Machine and Motion Control Devices

Cellular Telephones

Specifications

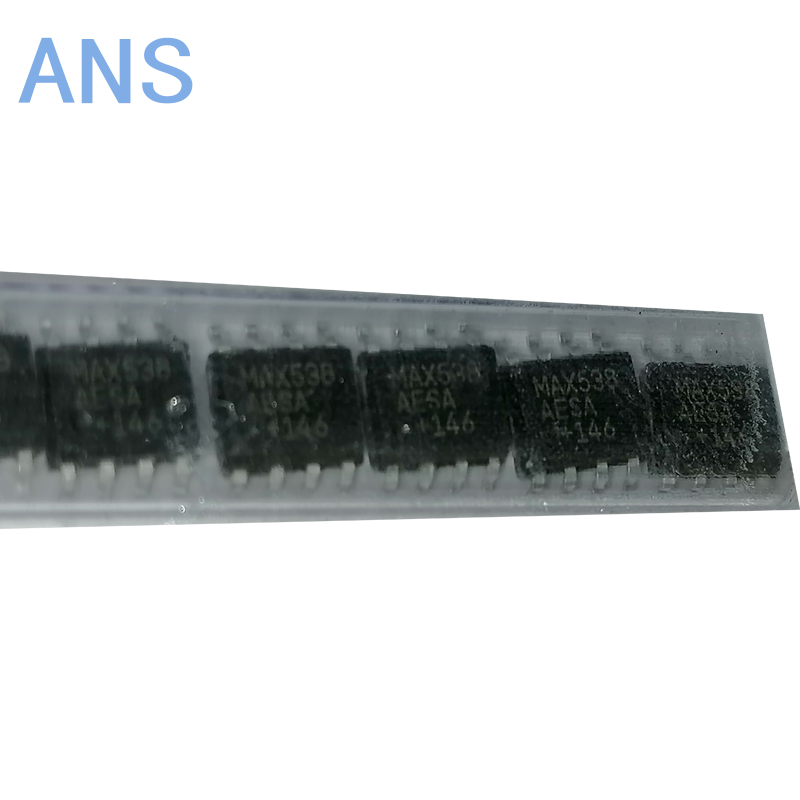

Actual product photos
